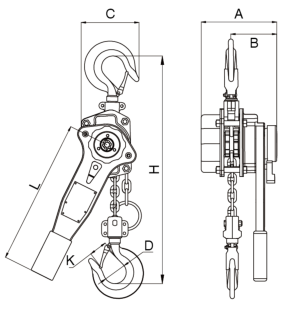

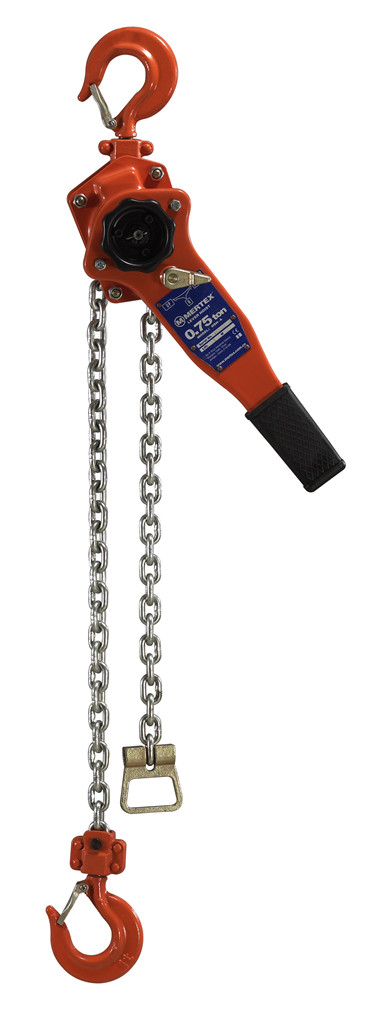

Tough and shock-resistant housingForged hooks with reinforced safety latch Double safety free chaining device, optimized for fast height adjustmentOptimized lever with improved ergonomics and reinforced cross-sectionHigh quality powder coating All unpainted parts with high-grade corrosion protectionLow-wear sintered brake liningsRatchet disc and pawl with additional wear-and corrosion protection Load wheel with needle bearingExtensive spare parts and maintenance service| Code | Model | Rated Load [Ton] | Standard Lift [m] | Proof Load [KN] | Effort Required to Lift Rated Load[N] | No.of Load Chains fall lines | Load Chains |
|
Net Weight [kg] | Extra Weight Per Meter of extra list [kg] | |||||||||||||||||||||
| H075 | HSH-A75 | 0.75 | 1.5 | 11 | 140 | 1 | 6 | 148 | 88 | 135 | 37 | 320 | 26 | 290 | 7.7 | 0.8 | |||||||||||||||
| H150 | HSH-A150 | 1.5 | 1.5 | 22.1 | 240 | 1 | 8 | 176 | 102 | 162 | 45 | 380 | 32.5 | 420 | 11.8 | 1.4 | |||||||||||||||
| H300 | HSH-A300 | 3 | 1.5 | 44.1 | 320 | 1 | 10 | 195 | 109 | 211 | 50 | 480 | 38 | 420 | 21 | 2.2 | |||||||||||||||
| H600 | HSH-A600 | 6 | 1.5 | 88.2 | 340 | 2 | 10 | 195 | 109 | 254 | 64 | 620 | 48 | 420 | 32 | 4.4 | |||||||||||||||
| H900 | HSH-A900 | 9 | 1.5 | 132.3 | 360 | 3 | 10 | 195 | 109 | 319 | 85 | 700 | 50 | 420 | 47 | 6.6 | |||||||||||||||
