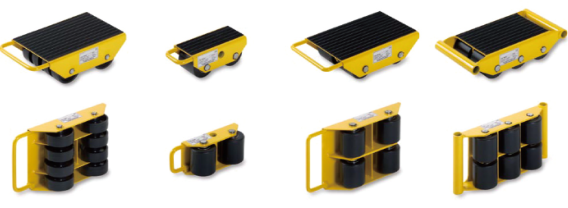

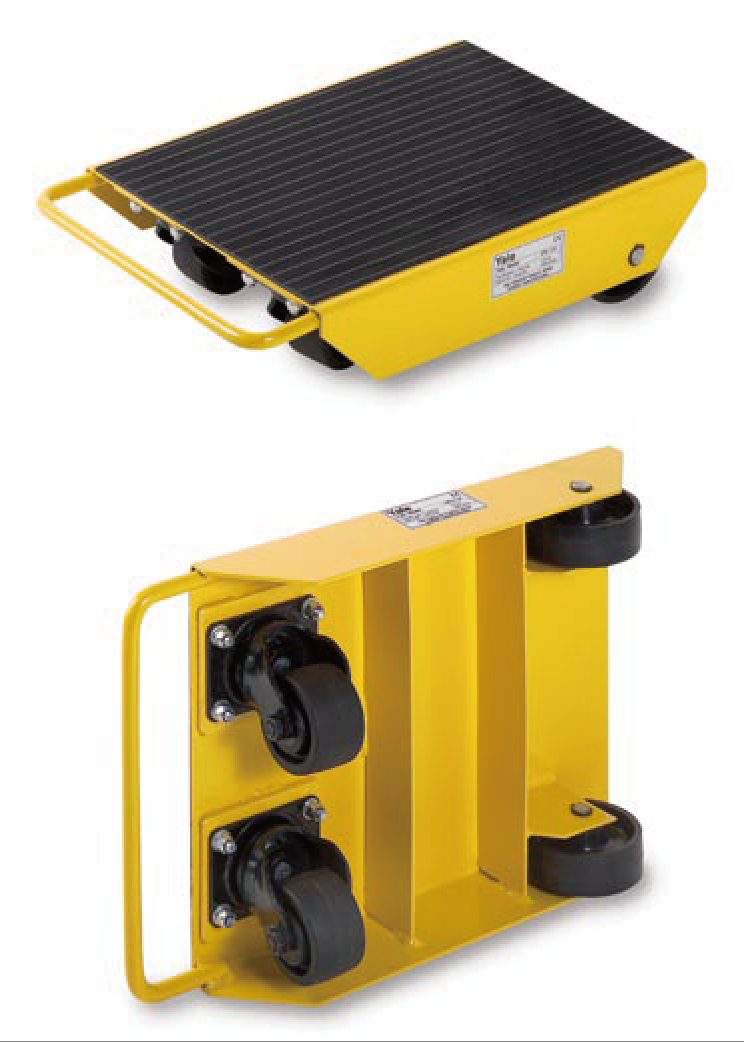

Solid forged steel construction.Anti-slip rubber lining.Abrasion-resistant nylon wheels.Models MF-2.5 and above are provided with two.Enclosed ball bearings per wheel.| Code | Model | CAPACITY[t] | WHEELS | Number of Wheels | Wheels diameter x width[mm] | Dimensions LxWxH [mm] | Weight [kg] |
| MF-1 | MF10 | 1.0 | fixed | 4 | 100*35 | 400*228*120 | 7.0 |
| MF-2 | MF20 | 2.0 | fixed | 8 | 100*35 | 400*200*120 | 8.0 |
| MF-2.5 | MF25 | 2.5 | fixed | 2 | 85*90 | 275*120*100 | 4.0 |
| MF-3 | MF30 | 3.0 | fixed | 4 | 85*85 | 400*228*100 | 9.5 |
| MF-6 | MF60 | 6.0 | fixed | 6 | 85*85 | 415*210*100 | 12.0 |
