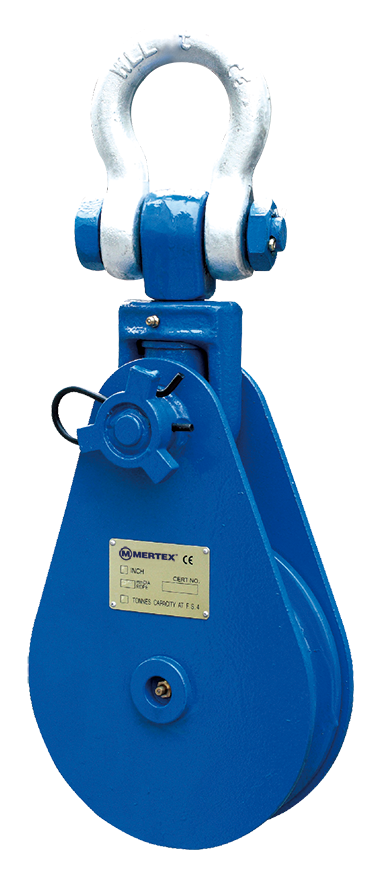

MLS TYPES HEAVY DUTY SNATCH BLOCKS
MLS TYPES HEAVY DUTY SNATCH BLOCKS
FEATURED
Capacity form 2t to 50t
Durable powder coat finish
Shackle type and hook type are available
Heavy-duty permits to perform under extreme condition
Forged spare parts enhance the quality

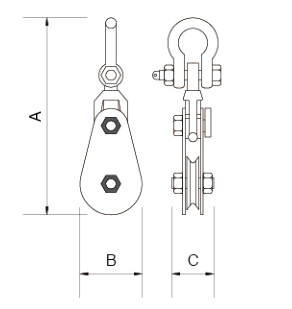

CODE TYPE HOOK S.W.L [t] SHEAVE DIA [mm] A1[mm] B[mm] C[mm] FOR WIRE DIA [mm] N.W. [kg]
206001 MLS3*X1 2 75 286 82 70 7-9 3.8
206002 MLS4(1/2)*X1 4 115 354 120 70 10-12 6.2
206003 MLS6*X1 4 150 399 160 70 16-18 8.3
206004 MLS6*X1 8 150 475 160 93 20-22 14.1
206005 MLS8*X1 8 200 528 210 93 20-22 18.7
206006 MLS8*X1 15 200 663 210 102 22-24 33
206007 MLS10*X1 10 250 679 260 115 24-26 34.7
206008 MLS10*X1 12 250 679 260 115 24-26 34.7
206009 MLS12*X1 12 300 769 310 133 24-26 54
206010 MLS12*X1 15 300 769 310 133 26-28 55
206011 MLS14*X1 22 355 788 365 140 28-32 109
206012 MLS16*X1 22 400 952 415 140 28-32 118
206013 MLS16*X1 30 400 1019 415 155 32-35 164
206014 MLS20*X1 30 500 1256 514 162 32-35 208
206015 MLS24*X1 50 600 1525 625 240 46-50 418
206016 MLS30*X1 85 760 1910 800 288 56-64 840
