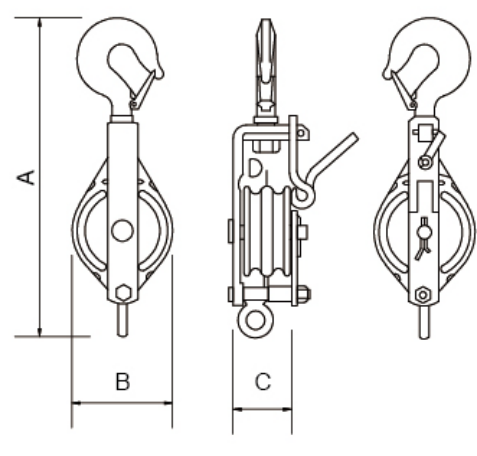

| Code | Type | S.W.L [t] | Sheave dia D[mm] | Dimensions[mm] | For wire dia[mm] | N.W. [kg] | ||||
| HOOK | Eye | Hook A1 | Eye A2 | B | C | |||||
| 208001 | 75CYx2S | 75CYx2SO | 0.5 | 75 | 286 | 227 | 87 | 77 | 8 | 2.8 |
| 208002 | 100CYx2S | 100CYx2SO | 1 | 100 | 311.5 | 284 | 112 | 88 | 10 | 4.3 |
| 208003 | 125CYx2S | 125CYx2SO | 1.5 | 125 | 370 | 344 | 140 | 100 | 13 | 7.8 |
| 208004 | 150CYx2S | 150CYx2SO | 2 | 150 | 442.5 | 417 | 168 | 146 | 16 | 12.2 |
| 208005 | 180CYx2S | 180CYx2SO | 3 | 180 | 498 | 478 | 204 | 157 | 19 | 18.5 |
| 208006 | 200CYx2S | 200CYx2SO | 4 | 200 | 590.5 | 556 | 226 | 188 | 22 | 31 |
| 208007 | 250CYx2S | 250CYx2SO | 5 | 250 | 590.5 | 651 | 276 | 220 | 25 | 49.8 |
| 208008 | 300CYx2S | 300CYx2SO | 6 | 300 | 795 | 775 | 330 | 238 | 26 | 72 |
| 208009 | 350CYx2S | 350CYx2SO | 10 | 350 | 934 | 898 | 395 | 260 | 28 | 102 |
