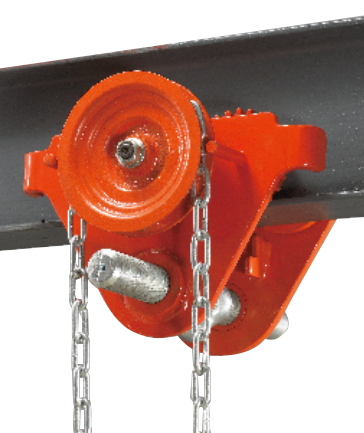

Version like roller running gear, however, driven by means of hand chainvia a hand chain sprocket. With galvanised hand chain for 3m running track heightAdditional price for extra m of hand chain applies| Code | Model | Rated Load [t] | Test Load [t] | I-Beam Width Range [mm] | Weight[kg] |
| ATG 005 | ATG0.5T | 0.5 | 0.75 | 50-220 | 9 |
| ATG 010 | ATG1T | 1 | 1.5 | 64-220 | 13 |
| ATG 020 | ATG2T | 2 | 3.0 | 88-220 | 20.5 |
| ATG 030 | ATG3T | 3 | 4.5 | 102-220 | 30 |
| ATG 050 | ATG5T | 5 | 7.5 | 114-220 | 45 |
