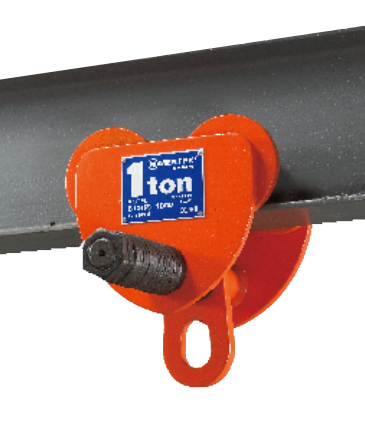

Suitable for manual, electric and pneumatic hoistsVery simple, virtually infinite adaptation to various beam flange widthsAdjustable for wide range of beams and different profiles (e.g.INP,IPE,IPB)| Code | Model | Rated Load [t] | Test Load [t] | I-Beam recommended [mm] | Weight[kg] |
| GCL610 005 | GCL6100.5T | 0.5 | 0.75 | 75-125 | 5.5 |
| GCL610 010 | GCL6101T | 1 | 1.5 | 75-125 | 8 |
| GCL610 020 | GCL6102T | 2 | 3.0 | 100-150 | 13 |
| GCL610 030 | GCL6103T | 3 | 4.5 | 125-150 | 18 |
| GCL610 050 | GCL6105T | 5 | 7.5 | 125-175 | 31 |
| GCL610 100 | GCL6110T | 10 | 15 | 125-180 | 76 |
