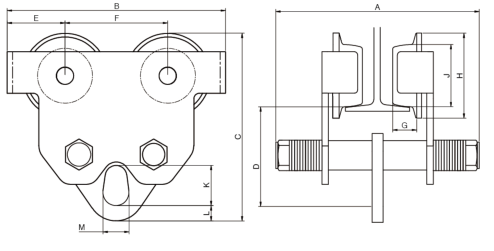

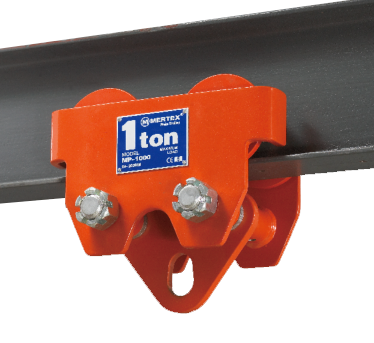

Double shafts designReasonable load and run stablySuitable for various profiles, both for flat and bevel flanges| Code | Model | Rated Load [t] | Test Load [t] | I-Beam recommended [mm] | I-Beam recommended [mm] |
|
|||||
| MP005 | MP0.5T | 0.75 | 0.75 | 50-152 | 50-203 | 6 | 6.5 | ||||
| MP010 | MP1T | 1 | 1.5 | 64-203 | 64-305 | 11.5 | 13 | ||||
| MP020 | MP2T | 2 | 3.0 | 88-203 | 88-305 | 18 | 20 | ||||
| MP030 | MP3T | 3 | 4.5 | 100-203 | 100-305 | 30 | 34 | ||||
| MP050 | MP5T | 5 | 7.5 | 114-203 | 114-305 | 40 | 46 | ||||
| MP100 | MP10T | 10 | 15 | 124-203 | 124-305 | 82 | 89 | ||||
