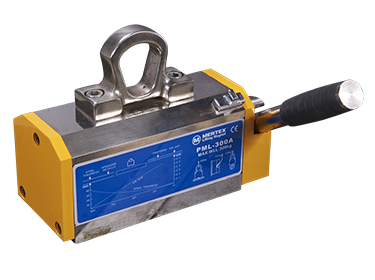

Magnetic Lifter – PML-A

FEATURED

Top handling – compact dimensions and low dead weight

Only small sheet thicknesses required

Safe – 2-hand operation is required to release the magnet

Guaranteed compliance with a safety factor of 3.5, safety factor: 3:1 is available

High-quality European devices

Code	Model	Rated lifting Capacity[kg]	Cylindrical Lifting capacity[kg]	Max pull-off Strength [kg]	Operation temperature[°C]	N.W.[kg]
Code	Model	Rated lifting Capacity[kg]	Cylindrical Lifting capacity[kg]	Max pull-off Strength [kg]	Operation temperature[°C]	N.W.[kg]
902001	PML-1A	100	30	300	<80	3.5
902002	PML-3A	300	100	900	<80	10
902003	PML-6A	600	200	1800	<80	21
902004	PML-10A	1000	300	3000	<80	40
902005	PML-15A	1500	500	4500	<80	65
902006	PML-20A	2000	600	6000	<80	83
