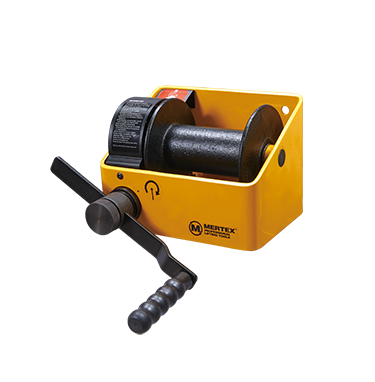

Position: flat or wall-mountedIndustry Shows, sceneriesWater treatment, water retentionsSports roomsHanging chandeliers….Absolute safety by wormgear reduction +automatic brake.Encased mechanical partsAutomatic brakeStainless steel ratchet spring.Straight-cut gears. Highly rugged design, thanks to the exceptional rigidity of the frameErgonomic and removable crank handle with rotating grip, This crank arm can be adjusted to minimise effort according to the loads Captive adjusting konb.| Code | Model | S.W.L [kg] |
Load Calacity[kg] |

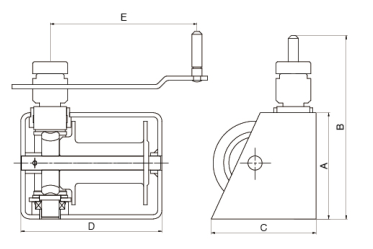

For wire Rope[mm] | length [mm] | Number of layers | A [mm] | B [mm] | C [mm] | D [mm] | E [mm] | ØX [mm] | Drive ration | Weight[kg] |
| 91001 | MS250 | 250 | 250 | 5 | 20 | 4 | 150 | 330 | 150 | 200 | 240 | 5*20 | 15:1 | 10 |
| 91002 | MS500 | 500 | 500 | 6.8 | 25 | 4 | 180 | 360 | 180 | 260 | 240 | 6.8*25 | 21:1 | 16 |
| 91003 | MS1000 | 1000 | 1000 | 9 | 35 | 4 | 300 | 490 | 300 | 300 | 370 | 9*35 | 26:1 | 40 |
