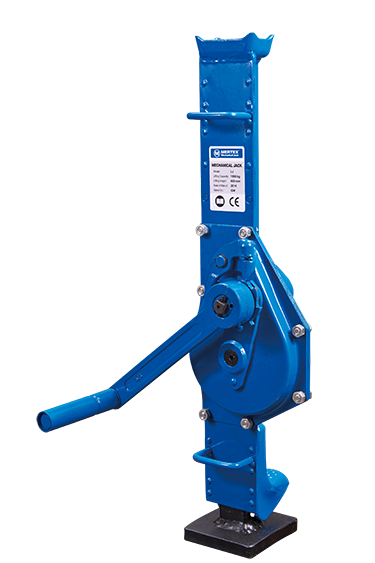

LIFTING JACKS model LJ
LIFTING JACKS model LJ
FEATURED
The load is held securely in any position. Inside the load brake the axial brake pressure is generated by the load itself, thus, it is proportional to the size of the load.
The self-locking, anti-kickback operating lever reduces the risk of injuries, The handle can be tilted for use in confined spaces.
The precisely machined gear box with optimal gear ration, ensures a minimum of effort and smooth operation.
Code Model Rated Capacity[t] Test Load
[kn] 		Chain shake To lift full Load Stroke
Min Lifting Height[mm]
Ø Hmin
A [mm] B [mm] C [mm] D [mm] E [mm] G [mm] K [mm] R [mm] Net Weight [kg]
06001 LJ1.5T 1.5 18.4 150 300 60 600 163 190 273 110 55 110 113 225 13.5
06002 LJ3T 3 36.8 280 350 70 730 197 200 296 130 60 140 127 250 21.2
06003 LJ5T 5 61.3 280 350 80 730 189 239 335 140 71 170 127 275 28.5
06004 LJ10T 10 122.5 560 410 85 800 250 293 498 140 86 170 248 300 46.8
06005 LJ16T 16 196 640 320 95 800 275 320 514 150 78 180 250 300 65
06006 LJ20T 20 245 640 320 100 860 275 335 529 150 78 180 250 380 75
06007 LJ25T 25 306.3 640 320 110 970 350 340 538 170 80 200 250 380 91
