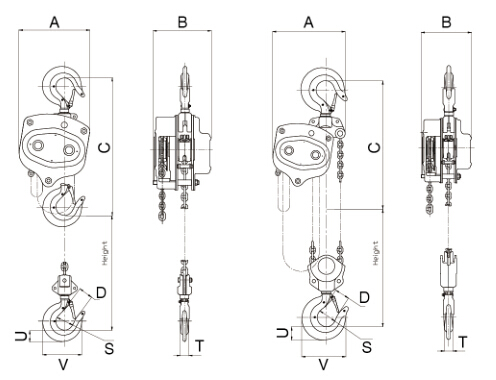

Main axle with ball bearing to minimize effortDouble brake pawl systemSelf-locking brake that can hold loads at any desired heightSuspension and load hooks equipped with safety latchesThe load hook will yield under overload instead of abrupt breakingLoad chain links for long life| Code | Model | Rated Load [Ton] |
Standard Lift [m] |
Test Load [Ton] | Efforts Required at Capacity[N] | Diameter of Load Chain [mm] | No.of Load Chains |
|
Net Weight [kg] | Extra Weight Per Meter of extra list [kg] | |||||||||||||||||||||||
| B005 | HSZ-50B | 0.5 | 2.5 | 0.75 | 262 | 5 | 1 | 135 | 124 | 288 | 20 | 35 | 17 | 22 | 73 | 7 | 1.5 | ||||||||||||||||
| B010 | HSZ-100B | 1 | 2.5 | 1.5 | 304 | 6 | 1 | 160 | 137 | 334 | 25 | 40 | 21 | 28 | 89 | 10.5 | 1.8 | ||||||||||||||||
| B015 | HSZ-150B | 1.5 | 2.5 | 2.25 | 395 | 8 | 1 | 195 | 143 | 415 | 35 | 45 | 25 | 34 | 100 | 15.5 | 2 | ||||||||||||||||
| B020 | HSZ-200B | 2 | 2.5 | 3 | 330 | 6 | 2 | 160 | 137 | 459 | 35 | 51 | 29 | 36 | 115 | 17 | 2.7 | ||||||||||||||||
| B030 | HSZ-300B | 3 | 3 | 4.5 | 402 | 8 | 2 | 195 | 143 | 539 | 36 | 55 | 32 | 47 | 135 | 23 | 3.2 | ||||||||||||||||
| B050 | HSZ-500B | 5 | 3 | 7.5 | 415 | 10 | 2 | 255 | 173 | 660 | 46 | 65 | 42 | 57 | 158 | 39 | 5.3 | ||||||||||||||||
| B100 | HSZ-1000B | 10 | 3 | 12.5 | 428 | 10 | 4 | 395 | 173 | 738 | 55 | 80 | 40 | 61 | 215 | 69 | 9.8 | ||||||||||||||||
| B200 | HSZ-2000B | 20 | 3 | 25 | 428*2 | 10 | 8 | 650 | 195 | 1002 | 80 | 105 | 60 | 92 | 185 | 162 | 19.8 | ||||||||||||||||
| B300 | HSZ-50B | 30 | 3 | 37.5 | 428*2 | 10 | 10 | 710 | 398 | 1050 | 82 | 105 | 65 | 98 | 285 | 237 | 23.9 | ||||||||||||||||
