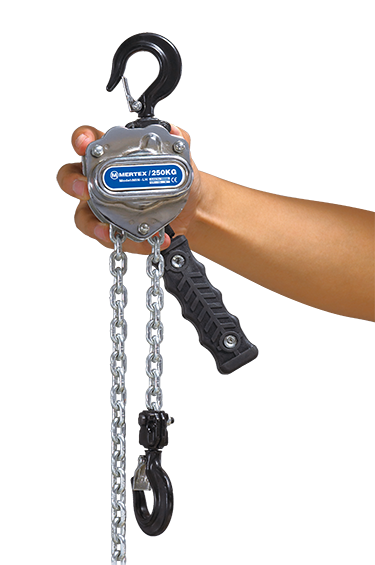

Extended application range due to wide hook openingEasy handling with low physical effort on the leverFully protected mechanism for low maintenance costEasy adjustment by free-wheeling position| Code | Model | W.L.L [Ton] |
Lift [m] |
Test Load [Ton] | Headroom [hook to hook] H min [min] | Effort to lift full load [kg] | No.of Load Chains fall lines | Load Chain [mm] |
|
Net Weight [kg] | Extra Weight Per Meter of extra list [kg] | |||||||||||||||||||||||
| LH025 | MIN-LH-O25 | 0.25 | 1 | 0.375 | 215 | 13 | 1 | Ø4*12 | 75 | 116 | 41 | 157 | 18 | 15.5 | 25 | 215 | 3.5 | 0.35 | ||||||||||||||||
| LH050 | MIN-LH-O50 | 0.5 | 1.5 | 0.75 | 255 | 18.5 | 1 | Ø5*15 | 90 | 135 | 51.5 | 180 | 24 | 21 | 32 | 255 | 3.5 | 0.55 | ||||||||||||||||
