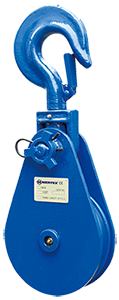

MH TYPES HEAVY DUTY SNATCH BLOCKS
MH TYPES HEAVY DUTY SNATCH BLOCKS
FEATURED
Capacity form 2t to 50t
Durable powder coat finish
Shackle type and hook type are available
Heavy-duty permits to perform under extreme condition
Forged spare parts enhance the quality

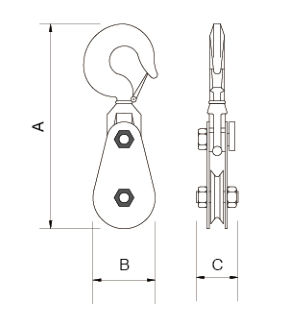

CODE TYPE HOOK S.W.L [t] SHEAVE DIA [mm] A1[mm] B[mm] C[mm] FOR WIRE DIA [mm] N.W. [kg]
205001 MH3*X1 2 75 292 82 70 7-9 3.9
205002 MH4(1/2)*X1 4 115 358 120 70 10-12 6.2
205003 MH6*X1 4 150 412 160 70 16-18 8.4
205004 MH6*X1 8 150 498 160 93 20-22 14.1
205005 MH8*X1 8 200 549 210 93 20-22 19
205006 MH8*X1 15 200 672 230 102 22-24 34
205007 MH10*X1 10 250 695 260 115 24-26 36
205008 MH10*X1 12 250 701 260 115 24-26 36
205009 MH12*X1 12 300 797 310 133 24-26 56
205010 MH12*X1 15 300 800 310 133 26-28 58
205011 MH14*X1 22 355 960 365 140 28-32 112
205012 MH16*X1 22 400 1027 415 140 28-32 122
205013 MH16*X1 30 400 1085 415 155 32-35 170
205014 MH20*X1 30 500 1177 514 162 32-35 213
205015 MH24*X1 50 600 1445 625 240 46-50 408
205016 MH30*X1 85 760 1960 800 288 46-50 810
