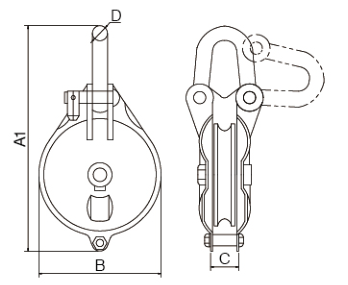

| Code | Type | S.W.L[t] | Sheave dia D[mm] | Dimensions[mm] | For wire dia [mm] | N.W. [kg] | |||
| A | B | C | D | ||||||
| 209001 | MB75x1 | 0.5 | 75 | 178 | 85 | 26 | 12 | 8 | 1.1 |
| 209002 | MB100x1 | 1 | 100 | 235 | 121 | 34 | 16 | 8 | 1.8 |
| 209003 | MB125x1 | 1.5 | 125 | 305 | 145 | 38 | 18 | 9 | 3.5 |
| 209004 | MB150x1 | 2 | 150 | 350 | 180 | 41 | 22 | 12 | 5.1 |
| 209005 | MB200x1 | 4 | 200 | 425 | 225 | 46 | 28 | 16 | 11.5 |
| 209006 | MB250x1 | 5 | 250 | 495 | 275 | 60 | 28 | 22 | 17 |
| 209007 | MB75x2 | 0.5 | 75 | 178 | 85 | 50 | 12 | 8 | 18 |
| 209008 | MB100x2 | 1 | 100 | 235 | 121 | 61 | 16 | 8 | 2.8 |
| 209009 | MB125x2 | 1.5 | 125 | 305 | 145 | 73 | 18 | 9 | 5.5 |
| 209010 | MB150x2 | 2 | 150 | 350 | 180 | 83 | 22 | 12 | 8.5 |
| 209011 | MB200x2 | 4 | 200 | 425 | 225 | 93 | 28 | 16 | 16.5 |
| 209012 | MB250x2 | 5 | 250 | 495 | 275 | 115 | 28 | 22 | 25.5 |
