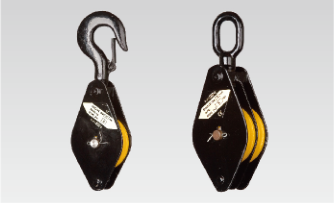

WIDE ROPE SNATCH BLOCKS
WIDE ROPE SNATCH BLOCKS

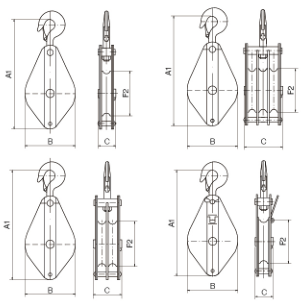

TYPE S.W.L[t] SHEAVE DIA F2[mm] DIMENSIONS[mm] WIRE ROPE DIA[mm] M.D. [mm]
HOOK EYE HOOK A1 EYE A2 B C
1B-63H 1B-63E 0.25 63 208.4 202.4 68 40 5 10
1B-75H 1B-75E 0.25 75 222.4 216.4 80 40 6 12
1B-100H 1B-100E 0.5 100 300.5 283.5 108 48.5 8 16
1B-125H 1B-125E 1 125 346 332.5 140 53.5 10 20
1B-150H 1B-150E 1 150 392 378.5 168 60 12 24
1B-180H 1B-180E 1.5 180 456.7 450 204 81 15 30
1B-200H 1B-200E 2 200 505.8 488 220 91.5 16 32
1B-250H 1B-250E 3 250 642.7 627 268 114 20 40
2B-63H 2B-63E 0.25 63 208.4 202.4 68 63 5 10
2B-75H 2B-75E 0.25 75 222.4 216.4 80 63 6 12
2B-100H 2B-100E 0.75 100 315.4 285 108 76 8 16
2B-125H 2B-125E 1 125 346 332.5 140 86 10 20
2B-150H 2B-150E 1.5 150 412.7 400 168 95 12 24
2B-180H 2B-180E 2 180 469.8 452 204 125 15 30
2B-200H 2B-200E 3 200 522.8 504 220 144 16 32
2B-250H 2B-250E 4 250 653 650 268 183 20 40
3B-63H 3B-63H 0.25 63 208.4 202.4 68 87 5 10
3B-75H 3B-75H 0.25 75 222.4 216.4 80 87 6 12
3B-100H 3B-100H 0.75 100 315.9 285 108 104 8 16
3B-125H 3B-125H 1 125 346 332.5 140 119 10 20
3B-150H 3B-150H 1.5 150 412.7 400 168 130 12 24
3B-180H 3B-180H 2 180 469.8 452 204 169 15 30
3B-200H 3B-200H 4 200 545.2 529.5 220 196 16 32
3B-250H 3B-250H 5 250 688.5 671 268 253 20 40
1S-63H 1S-63H 0.25 63 208.4 202.4 68 40 5 10
1S-75H 1S-75H 0.25 75 222.4 216.4 80 40 6 12
1S-100H 1S-100H 0.5 100 300.5 283.5 108 58.5 8 16
1S-125H 1S-125H 1 125 361 347.5 140 62.5 10 20
1S-150H 1S-150H 1 150 392 378.5 168 70 12 24
1S-180H 1S-180H 2.5 180 456.7 450 204 81 15 30
1S-200H 1S-200H 2 200 505.8 4800 220 91.5 16 32
1S-250H 1S-250H 3.5 250 642.7 627 268 114 20 40
