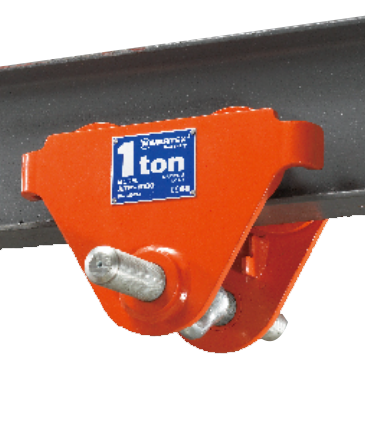

ATP Series Push trolley 0.5Ton-5Ton

ATP Series Push trolley 0.5Ton-5Ton

FEATURED

Low headroom due to compact construction

Adjustable to fit a wide range of beams and profiles (INP , IPE and IPB).

Precise adjustment by counter-threaded bolt

Centered load suspension -no side

movement on the beam

Encapsulated ball bearings for smooth running

Continuously adjustable lower flange trolley as push trolley

Code	Model	Rated Load [t]	Test Load [t]	I-Beam Width Range [mm]	Weight[kg]
Code	Model	Rated Load [t]	Test Load [t]	I-Beam Width Range [mm]	Weight[kg]
ATP 005	ATP0.5T	0.5	0.75	50-220	7
ATP 010	ATP1T	1	1.5	64-220	10
ATP 020	ATP2T	2	3.0	88-220	15.5
ATP 030	ATP3T	3	4.5	102-220	26
ATP 050	ATP5T	5	7.5	114-220	38
