TG Series Geared trolley 0.5Ton-50Ton

TG Series Geared trolley 0.5Ton-50Ton

FEATURED

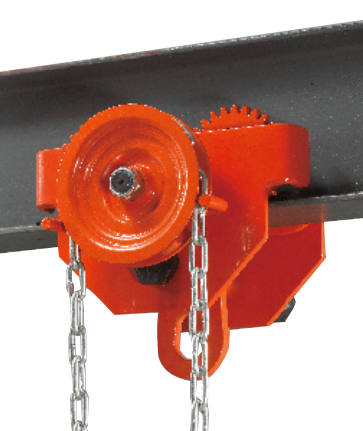

Geared trolley

Lightweight robust construction

Super-quick adjustment to any monorail

Durable baked enamel paint protection

Precision ball bearing trolley wheels CPMPLIES WITH AS

NZ1418.2

Code	Model	Rated Load [t]	Test Load [t]	I-Beam recommended [mm]	Weight[kg]
Code	Model	Rated Load [t]	Test Load [t]	I-Beam recommended [mm]	Weight[kg]
TG005	TG0.5T	0.5	0.75	64-110	9.5
TG010	TG1T	1	1.5	54-152	12
TG020	TG2T	2	3.0	76-165	16.5
TG030	TG3T	3	4.5	76-203	25
TG050	TG5T	5	7.5	88-203	38
TG100	TG10T	10	15	122-203	93
TG200	TG20T	20	30	122-203	215
TG300	TG30T	30	45	122-300	230
TG500	TG50T	50	75	122-300	610
