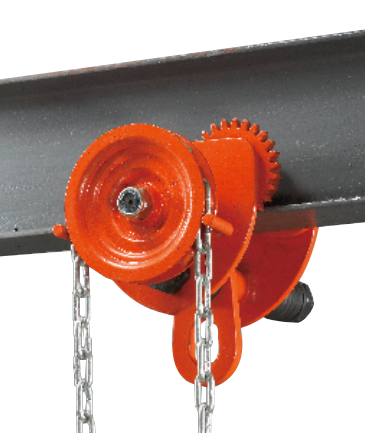

GCL-610 Series Geared trolley 0.5Ton-10Ton

GCL-610 Series Geared trolley 0.5Ton-10Ton

FEATURED

Suitable for manual, electric and pneumatic hoists

Very simple, virtually infinite adaptation to various beam flange widths

Adjustable for wide range of beams and different profiles (e.g.INP,IPE,IPB)

Version like roller running gear, however,driven by hand chain via a hand chain sprocket

With galvanized hand chain for 3m running track height

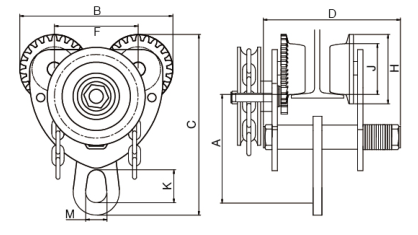

Code	Model	Rated Load [t]	Test Load [t]	I-Beam recommended [mm]	Weight[kg]
Code	Model	Rated Load [t]	Test Load [t]	I-Beam recommended [mm]	Weight[kg]
GCL610 005	GCL6100.5T	0.5	0.75	75-125	9
GCL610 010	GCL6101T	1	1.5	75-125	12
GCL610 020	GCL6102T	2	3.0	100-150	15
GCL610 030	GCL6103T	3	4.5	125-150	22
GCL610 050	GCL6105T	5	7.5	125-175	36
GCL610 100	GCL6110T	10	15	125-180	80
