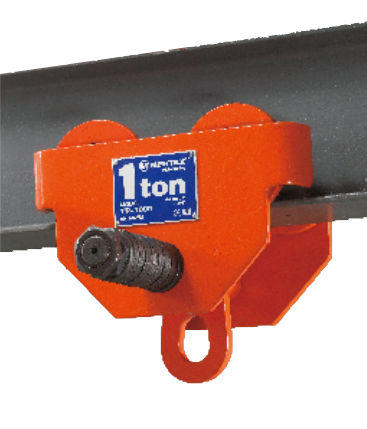

TP Series Push trolley 0.5Ton-10Ton

TP Series Push trolley 0.5Ton-10Ton

FEATURED

Lightweight robust construction

Super-quick adjustment to any monorail

Durable baked enamel paint protection

Precision ball bearing trolley wheels CPMPLIES WITH AS

NZ1418.2

Code	Model	Rated Load [t]	Test Load [t]	I-Beam recommended [mm]	Weight[kg]
Code	Model	Rated Load [t]	Test Load [t]	I-Beam recommended [mm]	Weight[kg]
TP005	TP0.5T	0.5	0.75	64-110	5.5
TP010	TP1T	1	1.5	54-152	9
TP020	TP2T	2	3.0	76-165	13
TP030	TP3T	3	4.5	76-203	22
TP050	TP5T	5	7.5	88-203	36
TP100	TP10T	10	15	122-203	83
