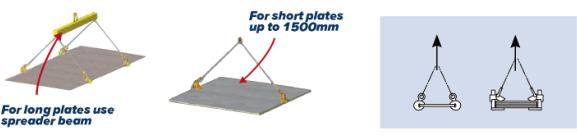

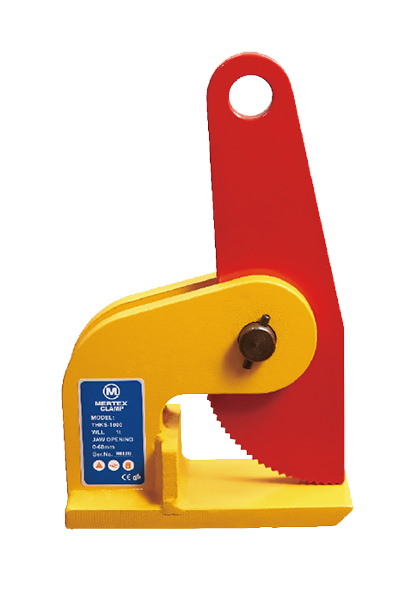

The Model THK is a horizontal lifting clamp intended to be used in pairs, sets of pairs, or in a tripod arrangement for transporting steel plates horizontal.Horizontal lifting clamp for handling inherently stacked bundles of sheets and steel plates.The lifting clamps are fastened to suitable slings and attached at three or more points on the load being handled.The THK has a larger jaw opening.With long loads, we recommend using a spreader beam.| Code | Model | Jaw Opening [mm] | Load Capacity [kg/pair] | Net Weight [kg] |
| 50201 | THKS0.5T | 0~35 | 500 | 3.1 |
| 50202 | THKS1T | 0~60 | 1000 | 6 |
| 50203 | THKS1.5T | 0~60 | 1500 | 6.5 |
| 50204 | THKS2T | 0~60 | 2000 | 7.5 |
| 50206 | THKS3T | 0~60 | 3000 | 10 |
| 50207 | THKS4T | 0~60 | 4000 | 11.5 |
| 50208 | THKS5T | 0~60 | 5000 | 15.5 |
| 50209 | THKS10T | 0~60 | 10000 | 23 |
| 50301 | THK1T | 0~100 | 500 | 7 |
| 50302 | THK1.5T | 0~100 | 1500 | 7.5 |
| 50303 | THK2T | 0~100 | 2000 | 9.5 |
| 50304 | THK3T | 0~100 | 3000 | 12 |
| 50305 | THK4T | 0~100 | 4000 | 14.5 |
| 50306 | THK5T | 0~100 | 5000 | 20 |
| 50307 | THK10T | 0~100 | 10000 | 28 |
