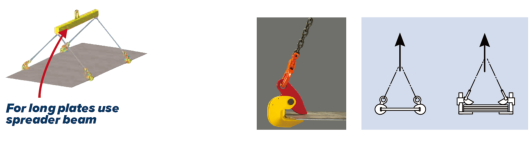

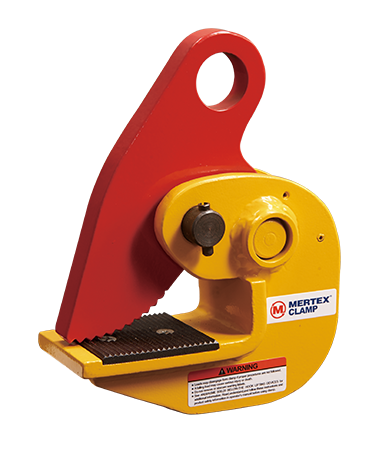

The PDB horizontal plate clamps are suitable for lifting and transport of steel plates, construction and profiled bar in horizontal position, Manufactured from high quality carbon steel, Avoid snatch re shock loadThe screw jaw of the body can be changed, also have a safety button.| Code | Model | Jaw Opening [mm] | Load Capacity [kg] | Net Weight [kg] |
| 98001 | PDB0.8T | 0~25 | 800 | 2.5 |
| 98002 | PDB1T | 0~30 | 1000 | 3.5 |
| 98003 | PDB1.6T | 0~30 | 1600 | 4 |
| 98004 | PDB2T | 0~40 | 2000 | 5 |
| 98005 | PDB3.2T | 0~45 | 3200 | 6 |
| 98006 | PDB4T | 0~50 | 4000 | 6.5 |
| 98007 | PDB5T | 0~55 | 5000 | 7.5 |
| 98008 | PDB6T | 0~65 | 6000 | 10.5 |
| 98009 | PDB6BT | 0~130 | 6000 | 22 |
| 98010 | PDB8T | 0~100 | 8000 | 22 |
| 98011 | PDB10T | 0~125 | 10000 | 33 |
