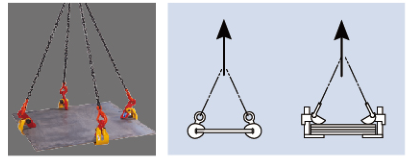

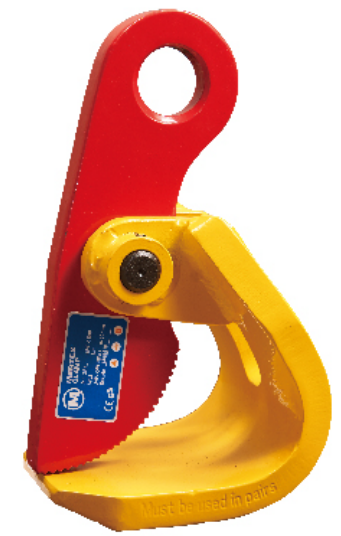

The HPC horizontal plate clamps for handling inherently stacked bundles of sheets and steel plates. The lifting clamps are fastened to suitable slings and attached at three or more points on the load being handled.HPC 1.5 has Spring close , HPC-3 and HPC-5 have spring open.| Code | Model | Jaw Opening [mm] | Load Capacity [kg/pair] | Net Weight [kg] |
| 90901 | HPC1.5T | 0~50 | 1500 | 4.3 |
| 90902 | HPC3T | 0~50 | 300 | 6 |
| 90903 | HPC5T | 0~60 | 5000 | 12 |
| 90904 | HPC9T | 0~100 | 9000 | 28.4 |
