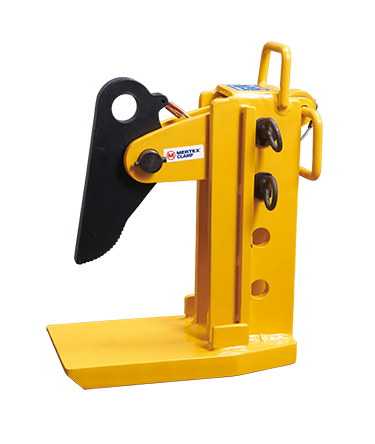

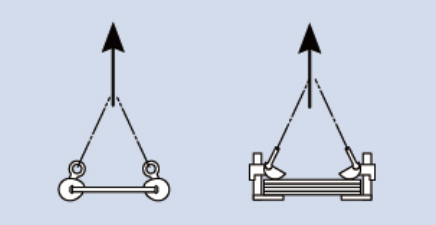

The PDK horizontal plate clamps offer superb flexibility because of the large adjustable jaw opening. The jaw is adjusted using a simple ratchet mechanism.These clamps are to be used in pairs and are especially suited to the transportation of large plate bundles.| Code | Model | Jaw Opening [mm] | Load Capacity [kg/pair] | Net Weight [kg] |
| 60101 | PDK1.5T | 0~180 | 3000 | 19 |
| 60102 | PDK4.5T | 0~240 | 4500 | 26 |
| 60103 | PDK6T | 0~240 | 6000 | 40 |
| 60104 | PDK8T | 0~240 | 8000 | 51 |
| 60104 | PDK15T | 0~240 | 15000 | 72 |
