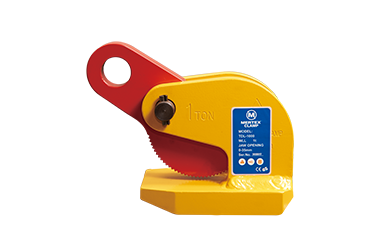

The TDL horizontal plate clamps share the same basic design features as the TCH range of clamps but have a reversed jaw design, This acts as an additional safety feature specifically for use with thin sheets which may have a tendency to deflect or sag or flex.The TDL clamps are particularly suited to thin plate with a surface hardness less than 300 HRC32 Rockwell C.| Code | Model | Jaw Opening [mm] | Load Capacity [kg/pair] | Net Weight [kg] |
| 60201 | TDL1T | 0~15 | 1000 | 2.5 |
| 60202 | TDL2T | 0~35 | 2000 | 6.8 |
| 60203 | TDL4T | 0~50 | 4000 | 18 |
| 60204 | TDL6T | 0~50 | 6000 | 18 |
