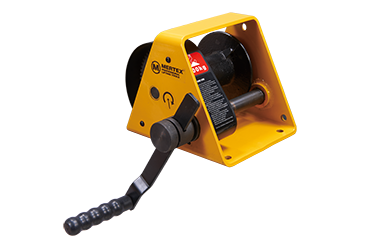

Position: flat or wall-mounted Industry Auditoriums, theatre sceneryWater treatment, water retentionsTransport: trailers, bargesSports roomsHanging chandeliers….Encased mechanical partsAutomatic brakeStainless steel ratchet springStraight-cut gearsHighly rugged design, thanks to the exceptional rigidity of the frameAutomatic brake made of composite materials.Ergonomic and removable crank handle with rotating grip, This crank arm can be adjusted to minimise effort according to the loads,Captive adjusting konb.| Code | Model | S.W.L [kg] |
Load Calacity[kg] |

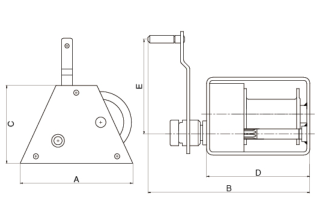

For wire Rope[mm] | length [mm] | Number of layers | A [mm] | B [mm] | C [mm] | D [mm] | E [mm] | ØX [mm] | Drive ration | Weight[kg] |
| 81001 | MR150 | 150 | 150 | 4 | 22 | 6 | 180 | 325 | 150 | 150 | 350 | 4*22 | 2.842:1 | 8 |
| 81002 | MR300 | 300 | 300 | 5 | 40 | 6 | 240 | 385 | 200 | 200 | 250 | 5*40 | 6.67:1 | 16 |
| 81003 | MR500 | 500 | 500 | 6.8 | 25 | 4 | 240 | 385 | 200 | 200 | 250 | 6.8*20 | 7.75:1 | 17 |
| 81004 | MR1000 | 1000 | 1000 | 9 | 25 | 4 | 412 | 485 | 300 | 300 | 350 | 9*25 | 23.75:1 | 38 |
| 81005 | MR2000 | 2000 | 2000 | 13 | 30 | 3 | 500 | 585 | 405 | 405 | 350 | 13*30 | 43.7:1 | 60 |
