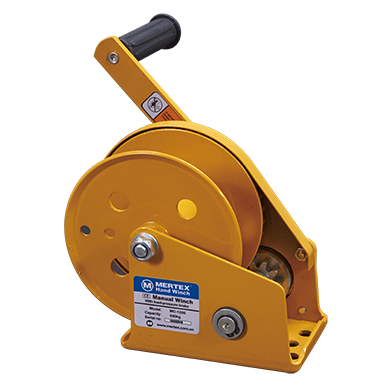

Winching housing and rope drum from robust steel plate for high versatilityRope drum bush bearings for flawless rope lead-off Spur gear drive for optimal efficiencyCompact design Easy and quick mounting onto walls ,poles, towers etc.Pivotable handle Automatic load pressure brake for safe holding and extremely sensitive lowering of the loadUnintentional brake release is prevented even with swinging loadsSuitable for operation in ambient temperatures of -10° to +50°| Code | Model | Rated Capacity [lb] | Test Load [KN] | Transmission Ratio | Hand Operated Strength [N] |

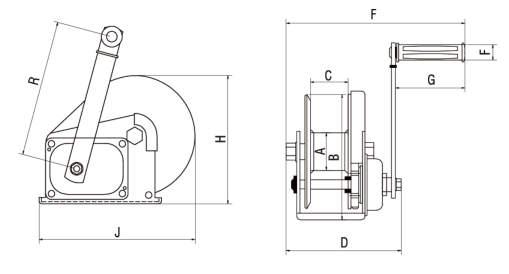

A [mm] |
B [mm] |
C [mm] |
D [mm] |
E [mm] |
F [mm] |
G [mm] |
H [mm] |
J [mm] |
R [mm] |
Net Weight (no wire rop)[kg] |
| 71001 | MC1200 | 1200 | 8 | 4.2:1 | 180 | Ø48 | Ø134 | 51 | 157 | Ø27 | 273 | 110 | 156 | 184 | 208 | 3.7 |
| 71001 | MC1800 | 1800 | 12 | 5:1 | 190 | Ø60 | Ø180 | 60 | 190 | Ø27 | 288 | 110 | 203 | 246 | 319 | 8.1 |
| 71001 | MC2600 | 2600 | 17.5 | 10:1 | 190 | Ø75 | Ø180 | 63 | 209 | Ø27 | 307 | 110 | 216 | 294 | 319 | 10.3 |
