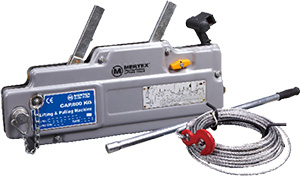

WIRE ROPE PULLING HOIST model LP

FEATURED

Robust multi-purpose device for pulling, lifting, lowering,tensioning and securing

For unlimited rope lengths

Jerk-free working to the exact millimetre

Use in every position, in every direction

Simple, easy and safe handling

Very high work safety

Virtually maintenance-freeLong service life

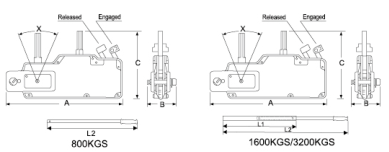

Code	Model	Rated lifting Capacity[kg]	Rated pulling Capacity[kg]	Rope advance Per full stroke[mm]	Rated forward Headpower[N]	Rope Diameter[mm]	Standard length of wire rope[m]	A [mm]	B [mm]	C [mm]	L1 [cm]	L2 [cm]	Net weight Without cable[kg]
Code	Model	Rated lifting Capacity[kg]	Rated pulling Capacity[kg]	Rope advance Per full stroke[mm]	Rated forward Headpower[N]	Rope Diameter[mm]	Standard length of wire rope[m]	A [mm]	B [mm]	C [mm]	L1 [cm]	L2 [cm]	Net weight Without cable[kg]
28001	LP800	1250	800	≥52	343	8.3	20	440	63	265	--	80	6
28002	LP1600	2500	800	≥55	441	11	20	540	130	290	80	120	11
28003	LP3200	5000	800	≥28	441	16	20	670	290	360	80	120	22
