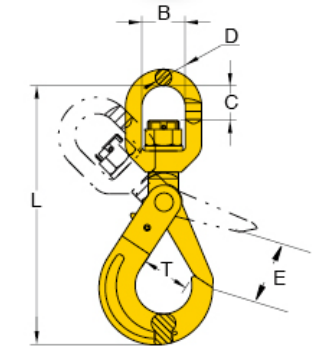

| Item | Chain Size | WLL | Main Dimensions | Weight | |||||
| mm | ton | B | C | D | L | T | E | KG | |
| 8-SSK-06 | 6 | 1.12 | 32.5 | 22 | 11.25 | 170 | 34 | 29 | 0.71 |
| 8-SSK-7/8 | 7+8 | 2 | 35.5 | 26 | 12.5 | 210 | 46 | 34 | 1.1 |
| 8-SSK-10 | 10 | 3.15 | 42 | 34 | 15 | 247 | 56 | 44 | 2 |
| 8-SSK-13 | 13 | 5.3 | 50 | 38.5 | 16 | 301 | 69 | 52 | 4 |
| 8-SSK-16 | 16 | 8 | 61 | 55 | 21.5 | 383 | 86 | 60 | 7.3 |
| 8-SSK-20 | 20 | 12.5 | 72 | 61 | 26 | 418 | 100 | 83 | 11.6 |
| 8-SSK-22 | 22 | 15 | 95 | 95 | 33 | 527 | 98 | 88 | 16 |
| 8-SSK-26 | 26 | 21.2 | 122 | 115 | 42 | 61 | 110 | 95.5 | 21.5 |
| 8-SSK-32 | 32 | 31.5 | 140 | 146 | 52 | 777 | 168 | 150 | 79 |
