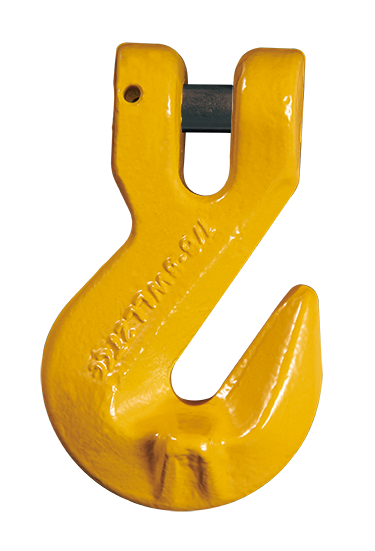

Not for use with Omega Link Item. 8-018No reduction of working load limit, thanks to supporting wingswhich prevent chain link deformation. | Item | Chain Size | WLL | Main Dimensions | Weight | |||
| mm | ton | E | A | H | L | KG | |
| 8-CGK-06 | 6 | 1.12 | 8 | 8 | 16 | 75 | 0.25 |
| 8-CGK-7/8 | 7+8 | 2 | 10.8 | 9.5 | 21.6 | 90 | 0.32 |
| 8-CGK-10 | 10 | 3.15 | 13.5 | 12.5 | 30 | 126 | 0.73 |
| 8-CGK-13 | 13 | 5.3 | 16.5 | 15 | 42.5 | 163.5 | 1.6 |
| 8-CGK-16 | 16 | 8 | 19.2 | 19.5 | 45.5 | 183.5 | 2.8 |
| 8-CGK-20 | 20 | 12.5 | 24 | 24 | 56 | 219 | 5 |
| 8-CGK-22 | 22 | 15 | 27 | 27 | 68.5 | 254 | 6.3 |
| 8-CGK-26 | 26 | 21.2 | 30 | 30 | 77 | 309 | 14.5 |
