| 工厂编号 | 型号 | 额定载荷[t] | 滑轮尺寸[mm] | 尺寸[mm] | 钢丝绳直径范围[mm] | 净重 [kg] | ||||

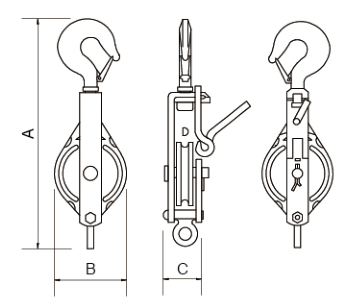

| 吊钩式 | 吊环式 | 吊钩式A1 | 吊环式A2 | B | C | |||||
| 207001 | 75CYx1S | 75CYx1SO | 0.5 | 75 | 286 | 227 | 87 | 50 | 8 | 1.6 |
| 207002 | 100CYx1S | 100CYx1SO | 1 | 100 | 311.5 | 284 | 112 | 55.5 | 10 | 3.5 |
| 207003 | 125CYx1S | 125CYx1SO | 1.5 | 125 | 370 | 344 | 140 | 63.5 | 13 | 4.6 |
| 207004 | 150CYx1S | 150CYx1SO | 2 | 150 | 442.5 | 417 | 168 | 101 | 16 | 7.7 |
| 207005 | 180CYx1S | 180CYx1SO | 3 | 180 | 498 | 478 | 204 | 107 | 19 | 11 |
| 207006 | 200CYx1S | 200CYx1SO | 4 | 200 | 590.5 | 556 | 226 | 128 | 22 | 19.8 |
| 207007 | 250CYx1S | 250CYx1SO | 5 | 250 | 590.5 | 651 | 276 | 147 | 25 | 33.8 |
| 207008 | 300CYx1S | 300CYx1SO | 6 | 300 | 795 | 775 | 330 | 162 | 26 | 48 |
| 207009 | 350CYx1S | 350CYx1SO | 10 | 350 | 934 | 898 | 395 | 178 | 28 | 66 |
