| 工厂编号 | 型号 | 额定载荷[t] | 滑轮尺寸[mm] | 尺寸[mm] | 钢丝绳直径范围 [mm] | 净重[kg] | |||

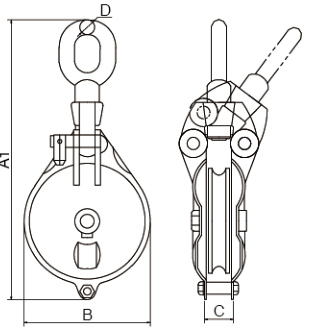

| A | B | C | D | ||||||
| 209001 | MBO75x1 | 0.5 | 75 | 230 | 85 | 26 | 12 | 8 | 1.5 |
| 209002 | MBO100x1 | 1 | 100 | 285 | 121 | 34 | 16 | 8 | 2.4 |
| 209003 | MBO125x1 | 1.5 | 125 | 346 | 145 | 38 | 18 | 9 | 4.2 |
| 209004 | MBO150x1 | 2 | 150 | 419 | 180 | 41 | 22 | 12 | 6.4 |
| 209005 | MBO200x1 | 4 | 200 | 517 | 225 | 46 | 28 | 16 | 12.5 |
| 209006 | MBO250x1 | 5 | 250 | 655 | 275 | 60 | 28 | 22 | 16 |
| 209007 | MBO75x2 | 0.5 | 75 | 230 | 85 | 50 | 12 | 8 | 2.1 |
| 209008 | MBO100x2 | 1 | 100 | 285 | 121 | 61 | 16 | 8 | 3 |
| 209009 | MBO125x2 | 1.5 | 125 | 355 | 145 | 73 | 18 | 9 | 5.9 |
| 209010 | MBO150x2 | 2 | 150 | 365 | 180 | 83 | 22 | 12 | 9 |
| 209011 | MBO200x2 | 4 | 200 | 517 | 225 | 93 | 28 | 16 | 17.5 |
| 209012 | MBO250x2 | 5 | 250 | 600 | 275 | 115 | 28 | 22 | 28.6 |
