无锡欧力特旗下品牌
| 工厂编号 | 80级链索 | 工作载荷极限 | 尺寸 | 净重 | |||

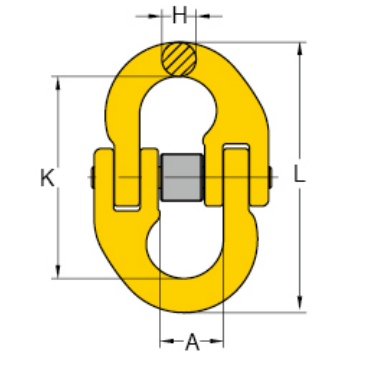

| mm | ton | A | L | K | H | KG | |
| 8-CNL-06 | 6 | 1.12 | 15 | 58 | 42 | 7 | 0.08 |
| 8-CNL-07 | 7 | 1.5 | 19 | 71.8 | 54.8 | 8.5 | 0.145 |
| 8-CNL-7/8 | 7+8 | 2 | 18 | 79.5 | 62.5 | 8.5 | 0.146 |
| 8-CNL-08 | 8 | 2 | 18 | 79.5 | 60.5 | 8.5 | 0.16 |
| 8-CNL-10 | 10 | 3.15 | 25 | 93 | 68 | 10.8 | 0.3 |
| 8-CNL-13 | 13 | 5.3 | 29 | 117 | 87 | 15 | 0.7 |
| 8-CNL-16 | 16 | 8 | 34.5 | 148 | 108.4 | 19.8 | 1.1 |
| 8-CNL-18 | 18 | 10 | 38 | 154 | 112 | 21 | 1.84 |
| 8-CNL-18/20 | 18+20 | 12.5 | 41 | 159.5 | 121.5 | 24 | 1.8 |
| 8-CNL-22 | 22 | 15 | 48 | 193.5 | 141.5 | 26 | 3.2 |
| 8-CNL-26 | 26 | 21.2 | 57.5 | 220 | 158 | 30 | 4.5 |
| 8-CNL-32 | 32 | 31.5 | 67 | 281 | 205 | 37 | 9 |
