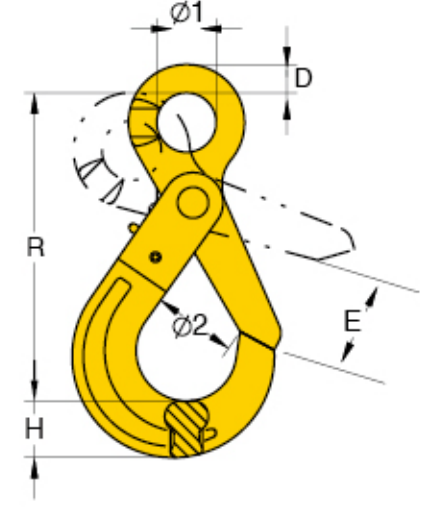

| 工厂编号 | 80级链索 | 工作载荷极限 | 尺寸 | 净重 | |||||
| mm | ton | Ø1 | R | D | Ø2 | H | E | KG | |
| 8-ESK-06 | 6 | 1.12 | 22 | 110.5 | 10 | 34 | 19.5 | 28 | 0.5 |
| 8-ESK-7/8 | 7+8 | 2 | 25 | 136 | 12 | 46 | 24 | 34 | 0.8 |
| 8-ESK-10 | 10 | 3.15 | 32 | 171 | 15 | 56 | 28.5 | 44 | 1.55 |
| 8-ESK-13 | 13 | 5.3 | 40.5 | 208.5 | 19.5 | 69 | 40 | 52 | 3.2 |
| 8-ESK-16 | 16 | 8 | 56 | 257.5 | 22 | 86 | 50.5 | 60 | 5.74 |
| 8-ESK-20 | 20 | 12.5 | 64.5 | 275 | 27 | 100 | 55 | 81 | 8.5 |
| 8-ESK-22 | 22 | 15 | 70 | 320 | 30 | 98 | 67 | 82 | 13 |
| 8-ESK-26 | 26 | 21.2 | 80 | 363 | 34 | 110 | 75 | 110 | 18 |
| 8-ESK-32 | 32 | 31.5 | 105 | 472 | 45 | 166 | 97 | 168 | 4.5 |
