| 工厂编号 | 80级链索 | 工作载荷极限 | 尺寸 | 净重 | ||||||||

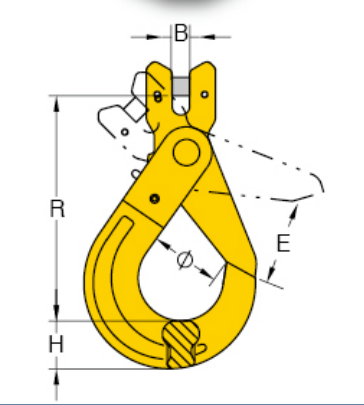

| mm | ton | E | B | H | Ø | R | KG | |||||
| 8-CSK-06 | 6 | 1.12 | 29 | 8.5 | 19.5 | 34 | 95.5 | 0.5 | ||||
| 8-CSK-7/8 | 7+8 | 2 | 34 | 9.5 | 24 | 46 | 121 | 0.8 | ||||
| 8-CSK-10 | 10 | 3.15 | 44 | 12 | 28.5 | 56 | 146 | 1.5 | ||||
| 8-CNL-13 | 13 | 5.3 | 52 | 15 | 40 | 69 | 182 | 2.8 | ||||
| 8-CSK-16 | 16 | 8 | 60 | 18 | 50.5 | 88 | 218 | 5.6 | ||||
| 8-CSK-20 | 20 | 12.5 | 83 | 25 | 55 | 100 | 240 | 7.5 | ||||
| 8-CSK-22 | 22 | 15 | 88 | 25.5 | 67 | 98 | 276.5 | 11.5 | ||||
| 8-CSK-26 | 26 | 21.2 | 95.5 | 30 | 75 | 110 | 310.5 | 18.5 | ||||
| 8-CSK-32 | 32 | 31.5 | 160 | 36 | 97 | 166 | 411 | 49.1 | ||||
