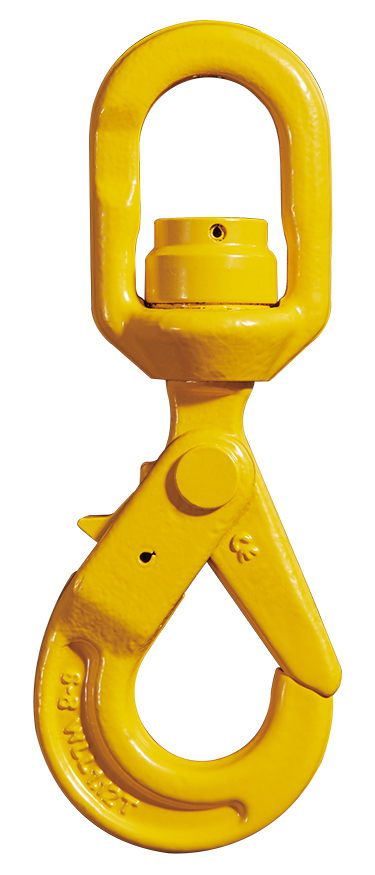

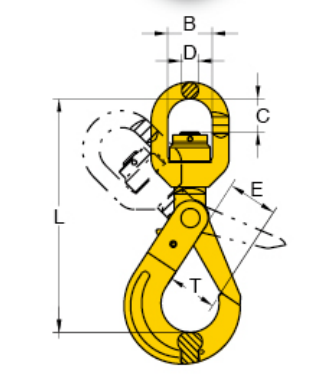

Ball Bearing Performs to Fully Swivel Under Load.| 工厂编号 | 80级链索 | 工作载荷极限 | 尺寸 | 净重 | |||||
| mm | ton | B | C | D | L | T | E | KG | |
| 8-SSB-06 | 6 | 1.12 | 32.5 | 34.8 | 11.5 | 163 | 34 | 27 | 0.71 |
| 8-SSB-7/8 | 7+8 | 2 | 36 | 40 | 13 | 195 | 46 | 35 | 1.1 |
| 8-SSB-10 | 10 | 3.15 | 42 | 48 | 15.5 | 237 | 56 | 44 | 2 |
| 8-SSB-13 | 13 | 5.3 | 50 | 58 | 17 | 282 | 69 | 53 | 4 |
| 8-SSB-16 | 16 | 8 | 61 | 61 | 21.5 | 342 | 86 | 60 | 7.3 |
| 8-SSB-20 | 20 | 12.5 | 76 | 75.5 | 26.5 | 400 | 100 | 87 | 11.6 |
| 8-SSB-22 | 22 | 15 | 97 | 97 | 33 | 461 | 98 | 80 | 16 |
| 8-SSB-26 | 26 | 21.2 | 123 | 115 | 42 | 537 | 110 | 98 | 21.5 |
