Not for use with Omega Link Item. 8-018No reduction of working load limit, thanks to supporting wingswhich prevent chain link deformation. | 工厂编号 | 80级链索 | 工作载荷极限 | 尺寸 | 净重 | ||||||||

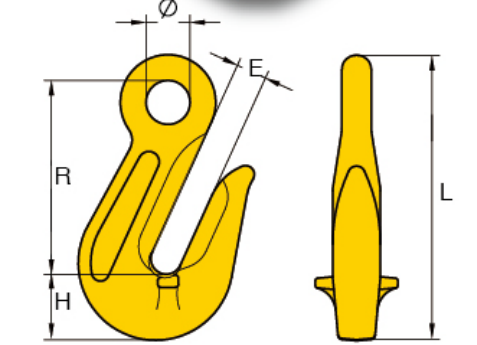

| mm | ton | E | Ø | H | R | L | KG | |||||
| 8-EGK-06 | 6 | 1.12 | 8 | 13.5 | 16 | 51 | 75.5 | 0.14 | ||||
| 8-EGK-7/8 | 7+8 | 2 | 10.8 | 17 | 18.5 | 60.5 | 88.5 | 0.245 | ||||
| 8-EGK-10 | 10 | 3.15 | 13 | 20 | 29 | 79.5 | 121.5 | 0.65 | ||||
| 8-EGK-13 | 13 | 5.3 | 16.5 | 26 | 42.8 | 99.7 | 158 | 1.39 | ||||
| 8-EGK-16 | 16 | 8 | 19.2 | 30 | 45.7 | 104 | 169 | 2.2 | ||||
| 8-EGK-20 | 20 | 12.5 | 24 | 37 | 56 | 140 | 219 | 4.6 | ||||
| 8-EGK-22 | 22 | 15 | 28 | 44 | 68 | 165 | 259 | 8.2 | ||||
| 8-EGK-26 | 26 | 21.2 | 30 | 41 | 77 | 188.5 | 298 | 9.8 | ||||
| 8-EGK-32 | 32 | 31.5 | 38 | 57 | 95 | 228 | 361 | 19.4 | ||||
