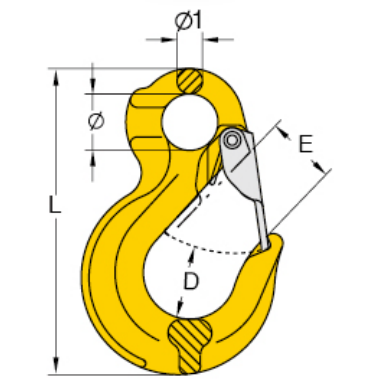

| 工厂编号 | 80级链索 | 工作载荷极限 | 尺寸 | 净重 | ||||||||
| mm | ton | Ø1 | E | D | Ø | L | KG | |||||
| 8-ESH-06 | 6 | 1.12 | 9 | 24 | 21 | 20 | 108 | 0.3 | ||||
| 8-ESH-7/8 | 7+8 | 2 | 11 | 30 | 26 | 25 | 133 | 0.4 | ||||
| 8-ESH-10 | 10 | 3.15 | 15 | 34 | 39 | 38 | 167 | 0.9 | ||||
| 8-ESH-13 | 13 | 5.3 | 19 | 39 | 54 | 43 | 213 | 1.7 | ||||
| 8-ESH-16 | 16 | 8 | 23 | 46 | 64 | 50 | 255 | 3.2 | ||||
| 8-ESH-20 | 20 | 12.5 | 24 | 40 | 80 | 62 | 305 | 5.8 | ||||
| 8-ESH-22 | 22 | 15 | 32 | 71 | 80 | 62 | 348 | 8.5 | ||||
| 8-ESH-26 | 26 | 21.2 | 35 | 91 | 82 | 64 | 394 | 13 | ||||
| 8-ESH-32 | 32 | 31.5 | 37 | 102 | 112 | 88 | 480 | 17 | ||||
