无锡欧力特旗下品牌

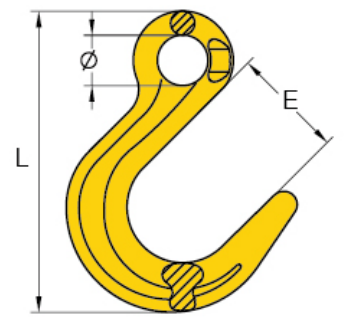

| 工厂编号 | 80级链索 | 工作载荷极限 | 尺寸 | 净重 | ||
| mm | ibs | E | Ø | L | KG | |
| 8-EFK-08 | 9/32(1/4) | 3500 | 63.5 | 18 | 163 | 2.4 |
| 8-EFK-10 | 3/8 | 7100 | 76 | 22 | 200 | 4.5 |
| 8-EFK-13 | 1/2 | 12000 | 89 | 27 | 238 | 7.1 |
| 8-EFK-16 | 5/8 | 18100 | 102 | 32 | 278 | 12.2 |
| 8-EFK-20 | 3/4 | 28300 | 114.5 | 38 | 325 | 19.3 |
| 8-EFK-22 | 7/8 | 34200 | 127.5 | 45 | 361 | 26.3 |
| 8-EFK-26 | 1 | 48500 | 140 | 67.5 | 402 | 37 |
| 8-EFK-32 | 1-1/4 | 72750 | 153.5 | 81.5 | 461 | 58.6 |
